Precision Aluminum Fixtures: Advanced CNC Machining Solutions for High-Performance Applications

Our state-of-the-art CNC machining capabilities specialize in manufacturing precision aluminum fixtures engineered to meet the most demanding industrial requirements. Utilizing premium-grade aluminum alloys including AL 6061-T6, AL 6063-T6, and Al5082, we deliver components that combine exceptional strength with lightweight properties.

Material Selection Guide:
• AL 6061-T6 (Aircraft Grade):

• Ultimate Tensile Strength: 310-330 MPa

• Thermal Conductivity: 167 W/m-K

• Typical Applications: Structural components, aerospace fittings

• AL 6063-T6 (Architectural Grade):

• Enhanced corrosion resistance

• Excellent extrudability for complex profiles

• Ideal for aluminum heatsink designs

• Al5082 (Marine Grade):

• Superior saltwater resistance

• High fatigue strength

• Preferred for coastal telecommunication CNC machining applications

Precision Manufacturing Capabilities:
Our facility operates advanced 4-axis and 5-axis CNC machine systems capable of producing components with:

• Standard tolerances: ±0.02mm

• High-precision tolerances: ±0.005mm

• Surface finishes: MIL-A-8625 anodizing (Type II/III), powder coating (RAL color matching)

• Maximum workpiece dimensions: 2000mm × 800mm × 500mm

Thermal Management Solutions:
We specialize in manufacturing advanced thermal components including:
High-efficiency aluminum radiator systems

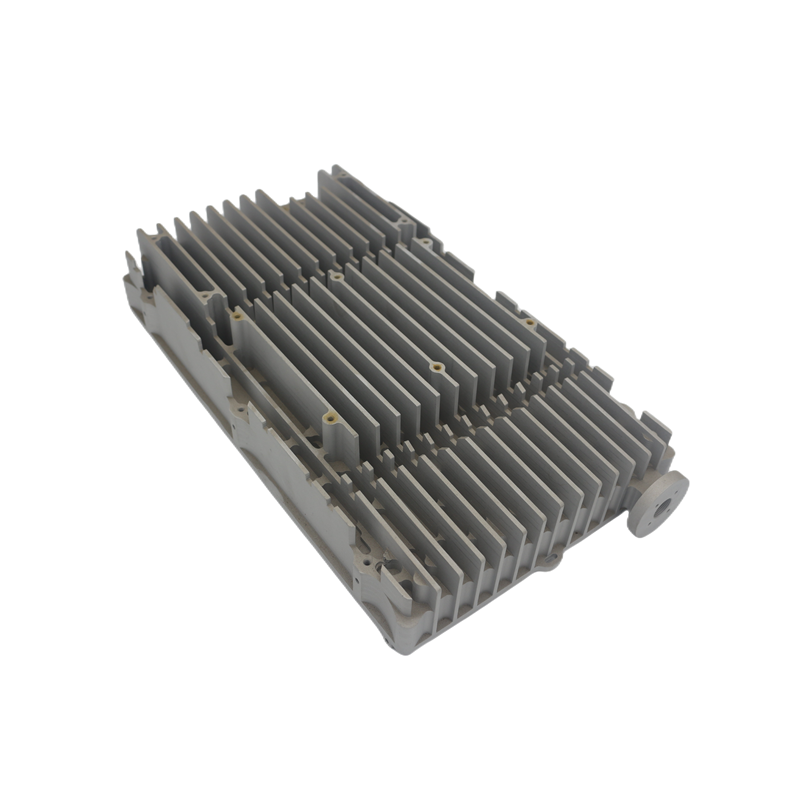

Custom aluminum heatsink designs with optimized fin geometry
Liquid-cooled cold plates for high-power electronics
Thermal interface solutions for telecom base stations

Our thermal solutions demonstrate:

• 30-40% better heat dissipation than standard designs

• Weight reduction up to 60% compared to copper alternatives

• Customizable fin densities from 6-25 fins per inch

Industry-Specific Applications:

Telecommunication CNC Machining:

• 5G antenna mounting fixtures with EMI shielding

• RF waveguide components (up to 40GHz)

• Base station structural elements

• Weather-resistant enclosures

Automotive & Robotics:

• Lightweight sensor mounts (30% weight reduction)

• Precision LiDAR housing components

• Robotic end-effectors with integrated cooling

• Autonomous vehicle sensor platforms

Quality Assurance Protocol:
Every aluminum CNC machine product undergoes rigorous testing:

1. Material Verification:

• Spectrometer analysis

• Hardness testing (Rockwell B scale)

2. Dimensional Inspection:

• CMM measurement (0.001mm accuracy)

• Optical comparator inspection

3. Performance Validation:

• Thermal cycling (-40°C to +125°C)

• Vibration testing (5-2000Hz)

• Salt spray testing (500+ hours)

Manufacturing Advantages:

• Rapid prototyping: 3-5 day turnaround

• Production capacity: 50,000+ units/month

• Secondary operations:

• Laser marking

• Tapping/threading

• Precision deburring

• Packaging options: ESD-safe, vacuum-sealed

Case Study: High-Power Telecom Enclosure
For a leading 5G infrastructure provider, we developed:

• 600mm aluminum heatsink assembly

• Integrated aluminum radiator channels

• Type III hardcoat anodized finish

• Achieved:

• 22% thermal resistance reduction

• 35% weight savings

• 0.015mm positional tolerance

Why Partner With Us?
• 15+ years aerospace machining experience
• ITAR-registered facility
• AS9100D and ISO 9001:2015 certified
• Full CAD/CAM/CAE integration
• DFM feedback within 24 hours

Emerging Technologies:

• Developing graphene-enhanced aluminum composites

• Implementing AI-driven toolpath optimization

• Expanding micro-machining capabilities (0.1mm tools)

For your next project requiring precision aluminum CNC machine components, contact our engineering team to discuss how we can optimize your designs for performance, cost, and manufacturability.
