Saiming Casting Launches High-Performance ADC12 Light Housing with Integrated Heat Dissipation and 5-Axis Machining Precision

DONGGUAN, China – Saiming Casting, a professional mechanical manufacturer with over a decade of “One-Stop” manufacturing experience, has officially released its new-generation lighting housing solution. Produced via the high pressure die casting process using ADC12 aluminum alloy, this product is specifically engineered to address thermal management, structural integrity, and post-processing accuracy for demanding applications including street lighting, industrial illumination, and outdoor fixtures.

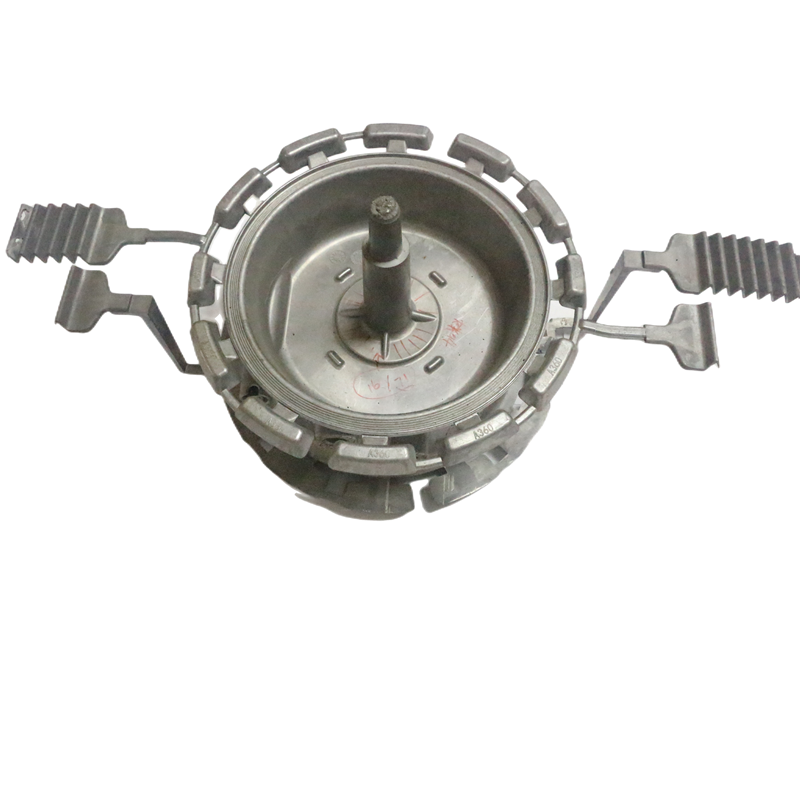

Unlike conventional housings that require separate assembly of heat sinks, this lighting housing is cast as a whole, eliminating thermal interface resistance. The ADC12 material provides a thermal conductivity of approximately 96 W/m·K, enabling efficient passive heat radiation. For engineers evaluating a lighting housing for LED arrays or high-wattage lamps, the integrated design reduces weight by 15–20% compared to bolted or extruded alternatives while maintaining uniform heat dissipation across the entire surface.

Precision Manufacturing: From High Pressure Die Casting to 5-Axis Machining

The production cycle begins with high pressure die casting, followed by secondary CNC operations. Standard as-cast tolerances of ±0.1 mm are further refined via 2nd CNC Machining, achieving precision tolerance up to ±0.01 mm on critical mounting interfaces. For complex geometries—such as curved light fixtures with multiple optical pockets—Saiming deploys 5 axis Machining as an optional post-casting service.

5 axis Machining allows simultaneous cutting from five directions without repositioning errors, ensuring that every LED light housing maintains consistent wall thickness and flatness. Data from pilot runs show that 5 axis Machining reduces secondary setup time by 40% and eliminates up to 0.05 mm of cumulative angular deviation. This is particularly critical when the lighting housing must interface with precision lenses or sealed light covers.

Key precision data:

• Standard CNC tolerance: ±0.05 mm

• With 5 axis Machining: ±0.008 mm on bore diameters

• Surface roughness achievable: Ra 1.6 μm after machining

Three Surface Finish Options for Different Service Environments

Customers can specify raw (uncoated), powder coating, or liquid painting for the lighting housing. Each option addresses a distinct set of requirements:

• Raw (no coating) – For indoor light fixtures where maximum heat radiation is needed and corrosion risk is low. Raw ADC12 naturally forms an oxide layer.

• Powder coating – Provides 80–120 μm thickness, salt spray resistance up to 500 hours (ASTM B117), recommended for outdoor LED light housing exposed to humidity or industrial pollution.

• Painting – Liquid paint enables custom RAL colors and a glossy finish, ideal for decorative light fixtures in commercial buildings.

For light covers that are often made of polycarbonate or glass, the matching lighting housing flange can be machined with a precise groove (width tolerance ±0.02 mm) to accommodate a silicone sealing gasket, ensuring IP65 or IP66 ingress protection.

Thermal Performance: Why ADC12 Aluminum Castings Outperform Alternatives

Aluminum castings are commonly used for heat radiation purposes, and the ADC12 alloy in this lighting housing delivers measurable benefits. In a 100W LED application, the lighting housing surface temperature stabilizes at 58–62°C under 25°C ambient, keeping LED junction temperature below 85°C—well within the 105°C maximum rating for long-term lumen maintenance.

Because the lighting housing is cast as a whole with good heat dissipation, no thermal paste or mechanical clamping between the LED PCB and the housing is required. Thermal simulation data indicate that a one-piece lighting housing reduces thermal resistance by 0.8–1.2 °C/W compared to two-piece designs. For every 10°C reduction in operating temperature, LED lifespan extends by approximately 20,000 hours (based on LM-80 data). Thus, choosing this lighting housing directly addresses the pain point of premature lumen depreciation.

Production Lead Time and Supply Chain Integration

Saiming guarantees a production lead time of 25 working days from mold approval to first shipment of finished lighting housing units. This lead time includes high pressure die casting, deburring, CNC machining (including optional 5 axis Machining), surface finishing, and quality inspection. For high-volume orders of 5,000–20,000 pieces per month, the company maintains dedicated die-casting cells to avoid schedule slippage.

As a “One-Stop” manufacturer, Saiming also provides in-house mold making, plastic injection molding, aluminum extrusion, and complete sub-assembly. This means that if your LED light housing requires plastic light covers or extruded heat sink extensions, all components can be coordinated under one roof, reducing supply chain coordination costs by an estimated 25–30%.

Selection Guide: Matching the Right Light Housing to Your Application

To help engineers and procurement professionals avoid over-specification, here is a practical decision matrix based on Saiming’s project data from the past 18 months:

For light covers, Saiming does not manufacture glass or polycarbonate directly but can recommend trusted partners based on your ingress protection (IP) rating and impact resistance needs (IK rating). The lighting housing itself is designed to accept standard light covers with 2–4 screw holes or snap-fit edges.

About Saiming Casting

Saiming Casting (SMI Casting Limited) is a professional mechanical manufacturer with its factory in Dongguan, China. Through years of continuous investment and improvement, it has grown into a “One-Stop” manufacturing center covering product design advice and prototyping, mold making, aluminum die casting, zinc die casting, CNC machining, plastic injection molding, aluminum extrusion, and complete sub-assembly.

The company exceeds customer expectations by suggesting ideal solutions prior to the commencement of production, using cost analysis and value engineering. Its project management ensures sample and production schedules are met, while integrated manufacturing services ease supply chain work. Current served industries include Green Energy, Medical Equipment, Telecommunication, Household Appliance, Military, Lighting, Hydraulics, and Building.

Every lighting housing, LED light housing, light fixtures, and light covers project is supported by in-house quality control including CMM inspection, X-ray porosity testing for die castings, and 100% dimensional reporting for 5 axis Machining features.
