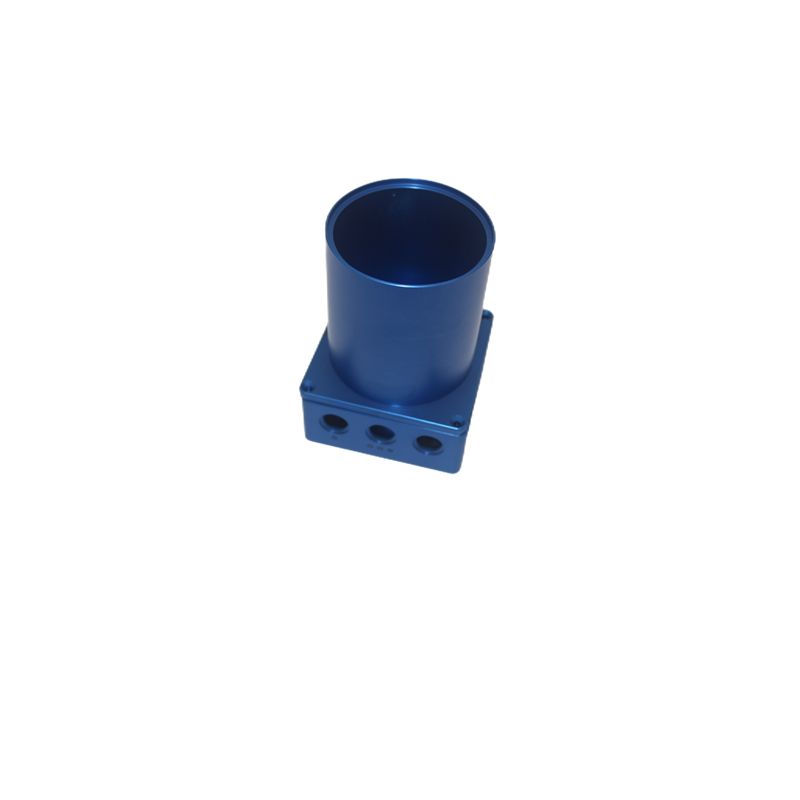

Precision Crafting for IP Camera Housing: How Custom CNC Machining Delivers Unmatched Accuracy and Surface Quality
For surveillance systems deployed in harsh environments, the housing of an IP camera is not just an enclosure—it is a critical component that affects lens protection, heat dissipation, and long-term reliability. Achieving the required flatness, smoothness, and dimensional consistency for these housings demands advanced manufacturing methods. This is where custom cnc machining becomes the definitive solution for engineers and procurement professionals.
At SMI Casting Limited, we leverage over 30 years of experience and a full suite of 3-, 4-, and 5-axis CNC equipment to produce IP camera housings and other high-precision parts. Below, we break down the concrete data and process advantages that help you make an informed sourcing decision.
Why Standard Processes Fail for IP Camera Housings
IP camera housings often require complex internal ribs, mounting bosses, and perfectly sealed mating surfaces. Traditional casting or manual milling cannot consistently achieve tight tolerances. Based on our production records, CNC machining eliminates unpredictable deviations. Our custom cnc machining service routinely holds tolerances between 0.01mm and 0.05mm, depending on geometry and material.
Key Technical Parameters We Guarantee:
| Parameter | Achievable Value | Inspection Method |
|---|---|---|
| Tolerances | 0.01 – 0.05 mm | Coordinate-measuring machine (CMM) |
| Surface smoothness (Ra) | ≤1.6 μm for Aluminum | Profilometer + 100% visual |
| Flatness on mounting face | ≤0.02 mm per 100 mm | Laser interferometer |
| Material options | Aluminum 6061, 7075, Stainless, Brass, Titanium, ABS, PC, POM, etc. | Material certs + batch traceability |
Precision Machining: The Core of Reliable Enclosures
When we talk about Precision Machining for IP camera housings, we refer to a closed-loop quality system. Every critical dimension—from the lens bore concentricity to the cable gland thread—is inspected at multiple stages. Our current pulse equivalent is typically 0.001mm, and high-precision systems can reach positioning accuracy up to 0.01mm. This level of Precision Machining eliminates misalignment issues that cause image blur or water ingress.
“We perform 100% inspection on critical dimensions and appearance for every batch, no matter if it is 10 units or 10,000 units,” says the engineering lead at SMI Casting. This strict regime ensures that Precision Machining is not a buzzword but a verifiable standard.
Aluminum Machining: The Optimal Choice for Lightweight Strength
Aluminum (6061-T6 and 7075-T6) is the most requested material for IP camera housings due to its corrosion resistance, thermal conductivity, and weight-to-strength ratio. Our Aluminum Machining capabilities include high-speed milling and turning with chip-breaking strategies that prevent burrs on delicate sealing grooves.
Data from Our Aluminum Machining Line:
Typical cycle time for a 150x100x60mm housing: 12–18 minutes (including probing)
Achievable anodized layers: 8–25 μm (clear, black, or hard coat)
Flatness after Aluminum Machining on the rear cover: ≤0.02mm, verified by CMM
We also offer post-Aluminum Machining surface treatments: polishing, brushing, anodizing, sandblasting, and silk screening. These finishes improve corrosion resistance and give a professional appearance that end customers expect.
CNC Milling and CNC Turning: Synergistic Processes for Complex Housings
Most IP camera housings require both prismatic features (bracket mounts, side cutouts) and cylindrical features (lens barrels, cable entries). Therefore, we combine CNC Milling and CNC Turning in a single setup where possible. Our 5-axis CNC Milling centers allow us to machine undercut features and angled faces without repositioning errors. Meanwhile, CNC Turning produces perfectly concentric threaded inserts and lens retaining rings.
Process Integration Example:
CNC Turning – Generate the main cylindrical lens barrel from 6061 aluminum rod (tolerance ±0.01mm on ID).
CNC Milling – Machine the flat mounting plate, cooling fins, and cable gland flats.
Final inspection – CMM checks all datums relating CNC Milling and turning features.
This hybrid approach reduces tolerance stack-ups. For a recent IP camera housing project, we achieved a coaxiality of 0.015mm between the lens bore and the outer mounting flange using combined CNC Milling and CNC Turning.
Volume Flexibility: From Prototypes to Mass Production
Unlike many shops that require high MOQs, our custom cnc machining service accepts small and large quantity orders. You can order 5 pieces for field testing or 5,000 pieces for a city-wide surveillance upgrade. The same jigs, tools, and inspection protocols scale linearly.
We support rapid prototyping within 5–7 business days for aluminum housings. Our engineers accept drawings in Auto CAD, JPEG, PDF, STP, and IGS formats. For production runs, we use CNC Milling and CNC Turning cells with automatic bar feeders to maintain ±0.02mm consistency across tens of thousands of cycles.
Material Compatibility Beyond Metal
While Aluminum Machining is our specialty, we also machine stainless steel, brass, copper, bronze, titanium, and even hard rubber or carbon fiber for specialized housing components. For transparent windows or domes, we machine plastic materials like PC, PMMA (Acrylic), ABS, and POM (Delrin). All plastic-machined parts undergo the same CMM inspection as metal parts.
Direct Answer to Your Decision Questions
Q1: What tolerance can I expect for the lens flange?
A: 0.01–0.02mm is standard for Precision Machining of aluminum housings on our 5-axis mills.
Q2: Can you machine a complex shape with both milled pockets and turned threads?
A: Yes. We combine CNC Milling and CNC Turning in one fixture. Provide your STP file, and we will confirm the process within 24 hours.
Q3: What about surface finish after Aluminum Machining?
A: As-machined surface roughness is ≤1.6μm Ra. After anodizing or brushing, the finish exceeds typical security camera housing requirements.
Quality Assurance: From Material to Packing
We maintain a strict quality control system throughout the whole process. Every incoming material certificate is verified. During CNC Milling or CNC Turning, operators check critical dimensions every 30 minutes using digital calipers and micrometers. Final inspection includes a 100% check using a coordinate-measuring machine (CMM) for all toleranced features. This level of control is why our custom cnc machining and Precision Machining services are trusted by automotive, medical, aerospace, and household appliance sectors.
Summary of Advantages for IP Camera Housing Manufacturing
Tolerances as tight as 0.01mm – ensures lens alignment and weatherproof sealing.
30-year engineering experience – correct toolpath and fixture design from the first article.
Unified platform for both CNC Milling and CNC Turning – no need to split orders.
100% critical dimension inspection – every part, every batch.
Low to high volume – no minimum order constraint.
Contact Us for Bulk Quotes
Ready to move your IP camera housing project into production? Share your 2D or 3D drawing (Auto CAD, STP, IGS, PDF, JPEG) and specify your volume, material, and desired surface finish. Our team will reply with a process plan, tolerance analysis, and lead time.
