Dongguan, China – SMI Casting, a professional mechanical manufacturer with over 10 years of experience in the machining field, now offers custom aluminum base plate castings and precision die casting services for telecommunications, medical equipment, green energy, and military applications. The company operates cold chamber die casting machines ranging from 280T to 1200T, utilizing aluminum alloys including ADC12, A380, LM6, and LM356. Standard machining tolerance is maintained within ±0.05mm, with the capability to achieve ±0.01mm for specialized requirements. Surface finishes include anodizing, bead blasting, silk screening, powder coating, passivation, and oil painting, with minimum surface roughness reaching Ra 0.2μm. As a dedicated aluminum die casting heatsink manufacturer, SMI Casting delivers 5,000 units per month with a 3-week lead time, supporting applications from telecommunication heatsinks to aluminum fans and custom base plates.

Custom Aluminum Base Plate Casting with ±0.05mm Tolerance

Precision is the cornerstone of functional aluminum base plates used in electronic cooling and structural mounting applications. The custom aluminum base plate casting process at SMI Casting employs high-pressure die casting techniques with closed-loop process control to maintain dimensional accuracy within ±0.05mm across all critical features. For projects requiring ultra-tight tolerances, the machining team can achieve ±0.01mm through secondary CNC operations. Each base plate is designed with specific wall thickness requirements and cooling channel configurations, optimized using ProE, SolidWorks, UG, or 3D Max software. The combination of precision casting and post-machining ensures that each custom aluminum base plate casting meets the geometric specifications required for direct component assembly without additional fitting.

Telecommunication Aluminum Casting Supplier with 280T to 1200T Capacity

The telecommunications industry demands aluminum castings with consistent thermal management properties and electromagnetic compatibility. As a telecommunication aluminum casting supplier, SMI Casting produces heatsinks, fan housings, and base plates for 5G infrastructure, radio frequency components, and network equipment. The 1200T cold chamber machine enables production of large-format heatsinks with complex fin geometries, while the 280T and 400T machines handle smaller precision components. Aluminum alloys ADC12 and A380 provide excellent thermal conductivity (96-113 W/m·K) and corrosion resistance for outdoor telecommunication enclosures. Surface treatment options including anodizing and powder coating provide additional environmental protection for equipment exposed to varying climatic conditions.

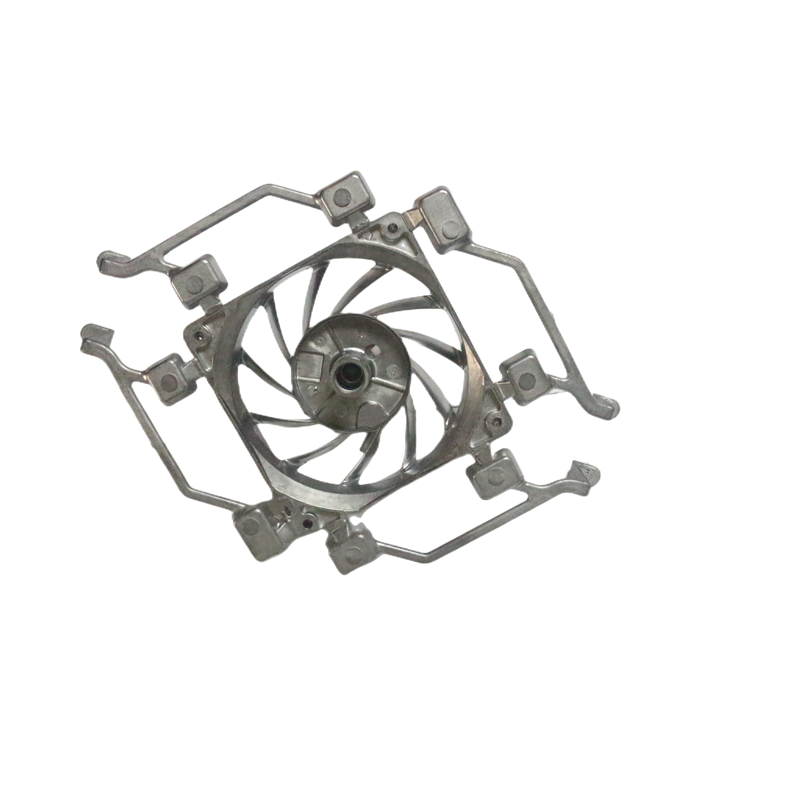

Aluminum Die Casting Heatsink Manufacturer with Complete Finishing Services

Thermal management requires heatsinks with optimized surface area and efficient heat transfer characteristics. SMI Casting as an aluminum die casting heatsink manufacturer designs and produces heatsinks with fin heights up to 100mm and minimum wall thicknesses of 0.8mm, achieving surface roughness values from Ra 0.2 to 3.2μm depending on functional requirements. Secondary CNC machining operations provide drilled and tapped holes, countersunk features, and precision mating surfaces with positional accuracy of ±0.05mm. Surface treatments include chemical conversion coating, anodizing for electrical isolation, and powder coating for aesthetic and protective finishes. The 5,000-piece monthly capacity supports both pilot runs and high-volume production programs, with MOQ set at 1,000 pieces per order.

CNC Machining Aluminum Casting Service with 10 Years of Precision Experience

Beyond die casting, SMI Casting provides comprehensive post-casting processing through its cnc machining aluminum casting service offering. The machining facility operates multi-axis CNC centers capable of milling, drilling, tapping, and contouring aluminum castings to final dimensional specifications. This integrated approach eliminates the need for customers to manage separate suppliers for casting and finishing. Machining tolerance of ±0.05mm is standard, with ±0.01mm achievable on critical locating features. The engineering team performs cost analysis and value engineering reviews prior to production, ensuring that each CNC machining aluminum casting service project is optimized for both performance and manufacturing efficiency.

±0.05mm Precision Aluminum Die Casting with Material Selection and Surface Finishing

The ±0.05mm precision aluminum die casting capability at SMI Casting is enabled by precision tooling manufactured to high standards, combined with process monitoring systems that track injection pressure, temperature, and cooling rates. Aluminum alloy selection depends on application requirements: ADC12 offers excellent castability and thermal conductivity for heatsink applications; A380 provides higher strength for structural components; LM6 and LM356 serve specialized requirements including marine and high-temperature environments. Surface finishing options include:

• Anodizing – Provides surface hardness (≥300 HV) and corrosion resistance

• Bead Blasting – Creates uniform matte finish, reducing glare and improving paint adhesion

• Silk Screen – Enables branding and identification marking on finished components

• Powder Coating – Offers durable color finishes with thickness of 60-120μm

• Passivation – Improves corrosion resistance without changing dimensional characteristics

• Oil Painting – Provides cost-effective protective coating for non-critical applications

Application Versatility and One-Stop Manufacturing Integration

SMI Casting serves a diverse range of industries with its aluminum base plate and die casting solutions. Application areas include:

• Green Energy – Solar inverter heatsinks and mounting base plates

• Medical Equipment – Precision chassis components and scanning system housings

• Telecommunication – Base station heatsinks and RF shield housings

• Military – Ruggedized equipment enclosures with environmental sealing

• Lighting – LED heatsinks and luminaire housings with thermal management features

• Hydraulics – Pump housings and valve bodies requiring pressure-tight castings

• Building – Architectural hardware and structural mounting brackets

The company provides product design advice, prototyping, mold making, die casting, CNC machining, and complete sub-assembly services. This integrated approach simplifies supply chain management and reduces project coordination overhead.

Selection Guide for Precision Aluminum Casting

When selecting a precision aluminum casting partner, consider the following parameters:

• Tolerance requirements – ±0.05mm is suitable for most applications; specify ±0.01mm only for critical mating surfaces

• Material selection – ADC12 for thermal applications; A380 for structural strength; LM6/LM356 for specialty requirements

• Surface finish – Ra 0.2-0.8μm for sealing surfaces; Ra 1.6-3.2μm for non-critical cosmetic surfaces

• Production volume – MOQ of 1,000 pieces with capacity up to 5,000 pieces/month

• Lead time – 25 working days standard, with expedited options available for urgent requirements
