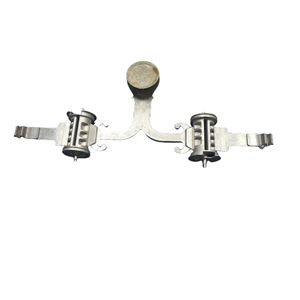

Aluminum Supportor

Precision Aluminum Die Casting Services with Custom CNC Machining Capabilities

Our manufacturing specializes in high-quality aluminum supporter and metal supporter production using ADC12 material through high pressure die casting processes. These components are particularly effective for heat radiation applications due to their cast-as-one-piece construction that ensures optimal thermal dissipation.

Core Manufacturing Specifications

• Materials: ADC12, A380, LM6, LM356 alloys

• Process: High-pressure die casting with secondary Custom CNC machining (achieving ±0.05mm tolerance)

• Surface Finishes:

• Raw cast

• Powder coating (available in multiple colors)

• Precision painting (custom color matching)

• Production Capacity:

• Cold chamber machines: 280T to 1200T

• Surface roughness: Ra 0.2-3.2μm

• Standard lead time: 25 working days

Specialized Applications

Our metal fixtures and camera fixture solutions are widely adopted in:

1. Thermal Management Systems:

• LED lighting housings

• Power electronics enclosures

• Automotive heat sinks

2. Precision Support Structures:

• Aluminum supporter frames for optical equipment

• Metal supporter brackets for industrial machinery

3. Imaging Equipment:

• High-stability camera fixture mounts

• Vibration-resistant metal fixtures for surveillance systems

Advanced Value-Added Services

• Custom CNC machining for critical features:

• Threaded holes

• Precision mating surfaces

• Complex geometrical features

• Comprehensive surface treatments:

• Anodizing (Type II/III)

• Bead blasting (various grit options)

• Laser etching (0.1mm resolution)

• 3D file compatibility:

• IGS, STP, X-T, STEP formats

• Design software: ProE, SolidWorks, UG, 3D Max

Quality Assurance & Logistics

• Tolerance Standards:

• Standard: ±0.05mm

• High-precision: ±0.02mm (upon request)

• Production Control:

• MOQ: 1,000 pcs (flexible for metal fixtures)

• Packaging: Anti-corrosion wooden cases for camera fixture products

• Certifications:

• ISO 9001:2015

• RoHS compliance

• Material traceability

Technical Advantages

1. Thermal Performance:

• ADC12's superior thermal conductivity (96-120 W/m·K)

• Die-cast fins for increased surface area

2. Structural Integrity:

• Aluminum supporter components with 240+ MPa tensile strength

• Metal supporter pieces with 1-2% elongation

3. Precision Guarantee:

• Bore concentricity < 0.01mm

• Flatness < 0.03mm/m

• Post-casting Custom CNC machining ensures:

Industry-Specific Solutions

For imaging equipment manufacturers, our camera fixture products offer:

• Vibration damping through precision-machined interfaces

• Lightweight aluminum supporter designs (30% weight reduction vs steel)

• Customizable metal fixtures with:

• Quick-release mechanisms

• Anti-rotation features

• Integrated cable management
